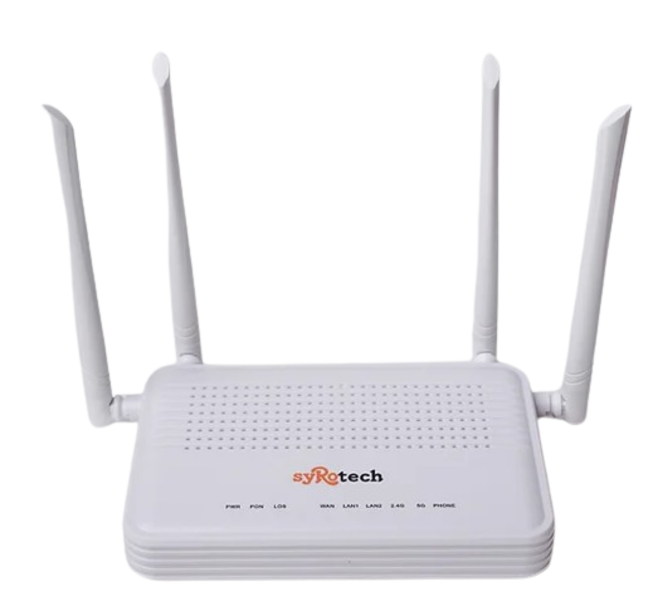

SY-GPON- 2010WADOT

Name: SY-GPON- 2010WADOT
Brand: Satej Innovations Private Limited
Price: 1600.0 INR
Availability: InStock

Price 1600.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SY-GPON- 2010WADOT Specification

Power Supply
DC 12V/1.5A

Network Device
GPON ONU (Gigabit Passive Optical Network Optical Network Unit)

Features
Dual Band WiFi, VoIP, SIP Protocol, Fiber Input, Web Configuration, Firewall, VLAN, QoS

Remote Control
Yes

Weight
Approx. 300g

IP Routing
Support (Static, Dynamic, PPPoE, DHCP)

Operating Temperature
0C ~ 50C

Device Type
Dual Band WiFi ONU (Router + Fiber ONU)

Antenna
4 External Antennas

Port
1 x PON, 1 x WAN, 2 x LAN, 1 x Phone (RJ11)

Power Consumption
<12W

Dimension (L*W*H)
185mm x 125mm x 32mm

Usage & Applications
Home, Office, Enterprise Broadband FTTH Applications

Frequency
2.4GHz + 5GHz

Interface Type
Ethernet (RJ45), Fiber (SC/APC), Phone (RJ11)

Connectivity Type
Wired & Wireless (Dual Band WiFi 2.4GHz + 5GHz)

Number Of Ports/Pins
1 PON, 1 WAN, 2 LAN, 1 TEL

Cable Length
N/A (depends on deployment)

Firmware Upgrade
Remote/Local (Web-based)

PON Interface
SC/APC, Single Fiber

LED Indicator
PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G, PHONE

Security
WPA/WPA2, Firewall, MAC Filtering, Access Control

MTU Size
1518 Bytes

Downstream/Upstream
2.5Gbps / 1.25Gbps

SIP Voice Support
Yes

WiFi Standard
IEEE 802.11b/g/n/ac

Installation
Desktop Mount

Flash/Memory
16MB Flash, 128MB RAM

ONU Type
Single Fiber, GPON, SFU/VoIP

About SY-GPON- 2010WADOT

The SY-GPON-2010WADOT is a trending, prodigious dual band WiFi ONU blending superior speed with exclusive stability for homes and businesses. Capitalise on its resplendent 2.5Gbps downstream and 1.25Gbps upstream rates, robust WiFi (IEEE 802.11b/g/n/ac), and comprehensive LED indicator system for seamless connectivity insights. Advanced security-WPA/WPA2, firewall, and MAC filtering-fortifies every connection, while SIP voice support and multiple ports (PON, WAN, LAN, Phone) offer exceptional versatility. Remote management, QoS, VLAN, and desktop-friendly design ensure optimal FTTH deployment. Elevate your network with this elite, single-fiber gigabit solution.

Optimise Enterprises: Versatile Advantages, Commercial & Plant Applications

The SY-GPON-2010WADOT presents remarkable advantages for enterprise broadband, plant setups, and robust commercial applications. Its dual band WiFi and fiber input offer a resplendent boost in bandwidth and stability, supporting VoIP, seamless remote communication, and real-time data access. Ideal for plant automation, office networking, and FTTH, its superior QoS and VLAN features capitalise on fibre efficiency, ensuring reliable, high-speed connections even in demanding, multi-device environments. This exclusive solution empowers businesses to scale network infrastructure effortlessly.

Domestic Market Coverage, Packaging, and Payment Details

Catering to an extensive domestic mar, the SY-GPON-2010WADOT is available on a quotation basis, ensuring tailored pricing for every client. Flexible payment terms are provided for ease of transaction. Each unit is securely packaged with full handover documentation, ensuring product integrity from warehouse to delivery. This strategic approach guarantees rapid distribution within the main domestic market, meeting network upgrade needs for homes, offices, and enterprises with confidence and efficiency.

FAQ's of SY-GPON- 2010WADOT:

Q: How does the SY-GPON-2010WADOT support high-speed internet usage in home and enterprise environments?

A: With dual band WiFi and gigabit fiber interface, the SY-GPON-2010WADOT ensures resplendent ultra-fast connectivity for both home and enterprise FTTH applications, providing consistent speeds up to 2.5Gbps downstream and 1.25Gbps upstream.

Q: What security features are included to protect my network on the SY-GPON-2010WADOT?

A: This device incorporates superior security protocols, featuring WPA/WPA2 encryption, firewall protection, MAC filtering, and access control to safeguard network traffic against unauthorized access.

Q: Where can the SY-GPON-2010WADOT be installed and what is the recommended setup process?

A: Designed for desktop mounting, this ONU can be installed in homes, offices, or industrial plants. Connect the fiber (SC/APC), power up with DC 12V/1.5A, link your devices to the LAN, WAN, or Phone ports, and configure via the web-based management interface.

Q: What are the main commercial benefits of using this ONU in plant or office networks?

A: Businesses and industrial plants can capitalise on superior bandwidth allocation, advanced QoS, and VLAN support for real-time data transfer, VoIP calls, and secure, segmented networking.

Q: How can firmware upgrades be managed for the SY-GPON-2010WADOT?

A: Firmware can be conveniently upgraded either remotely or locally through the web-based management interface, ensuring your device stays up-to-date with the latest features and security patches.
